RL90000 - Specifications

RL90000 Compression Disk, Alloy Steel

Environmentally-protected low-profile compression disk. 5000 and 10,000 lb models can also be used in tension loading applications. Shear web design provides excellent performance, low-profile feature makes it very suitable for applications where height is critical. Capacities from 5000 to 100,000 lb (2268.0 to 45,359.4 kg). Complete with 20' (6.1m) of load cell cable.

RL90000 Compression Disk

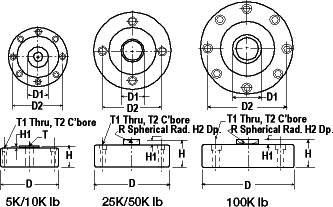

Dimensional Drawing

Rated Capacity	T	R	D	D1	D2	H	H1	H2	T1	T2
lb/inches
5000-10,000	5/8-18 UNF-3B	-	4.12	1.26	3.50	1.37	.12	-	.28.406 x .283 DP
25,000-50,000	-	.875	4.75	1.53	4.00	2.12	.50	.30	.34.508 x .38 DP
100,000	-	.875	5.50	1.98	4.60	2.25	.25	.30	.41.626 x .4 DP
kg/millimeters
2268.0-4539.9	5/8-18 UNF-3B	-	104.6	32.0	34.8	34.8	3.05	7.6	7.210.3 x 7.2 DP
11,339.8-22,679.7	-	22.2	120.7	38.9	101.6	53.8	12.7	12.7	8.712.9 x 9.7 DP
45,359.4	-	22.2	139.7	50.4	116.8	57.2	6.4	7.6	10.310.3 x 10.2 DP
